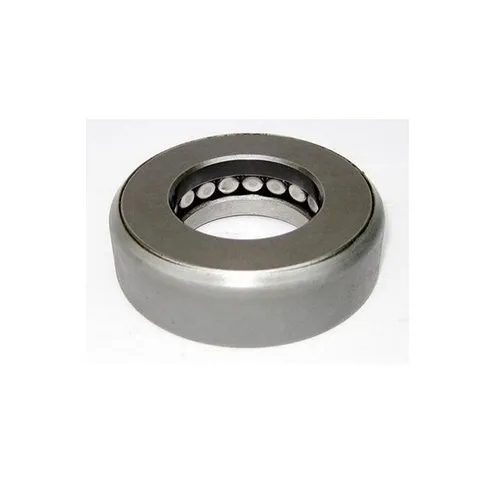

ARB 38.608 mm King Pin Bearing

Brand: Eastern Bearings Private Limited

Ask For Price

Product Specification:

Type	King Pin Bearing
Bearing Number	T-151-1
Brand	ARB

Product Description:

They take up very high shok loads on the steering king pin.They consist of two tapered thrust...

View Complete Details

Product Details
Company Details

Product Specification:

Type	King Pin Bearing
Bearing Number	T-151-1
Brand	ARB
Diameter	38.608 mm
Fig	2
Dimension d	38.608 mm
Boundary Dimension D	72.619 mm
Boundary Dimension T	21.433 mm
Boundary Dimension R	0.8 Max
Basic Load Rating Dynamic C	114700
Basic Load Rating Static Co	337300
Mass	0.360 Kg

Product Description:

They take up very high shok loads on the steering king pin.
They consist of two tapered thrust races, rollers, cage(in caged type) and an outer retainer which holds components.

They are of two types :
Full complements type (without cage)
Caged type

Company Description :

Manufacturer of ball bearings, spheriacal roller bearings, four row cylindrical bearings, four row taper bearings, double raw taper bearings

GST No. : 06AABCE1150B1ZI
Address : Nathupur, Sonipat-131029
